WT610 Access platform hire

The Palfinger WT610 Access Platform, with its towering 61-metre boom, is specifically engineered for high-access infrastructure sites. Boasting Palfinger's hallmark of high quality, fully hydraulic processes, and stringent safety standards, this truck-mounted platform is ideal for us across various industry sectors.

Request a quote

WT610 Access platform hire

The Palfinger WT610 Access Platform, with its towering 61-metre boom, is specifically engineered for high-access infrastructure sites. Boasting Palfinger's hallmark of high quality, fully hydraulic processes, and stringent safety standards, this truck-mounted platform is ideal for us across various industry sectors.

1300 774 586 Request a quote

WT610 - (61m) access platform specifications

The WT610 is a powerhouse in its category, featuring a total weight of 35,500kg and an 8 x 8 drive type for unrivalled stability and strength. This platform boasts a maximum working height of 61 metres and a reach of 37.5 metres. It includes a cage size of 3.90m x 1.10m, supporting a maximum load of 600kg, and offers both cage and boom rotation capabilities for extensive reach and flexibility in operation.​

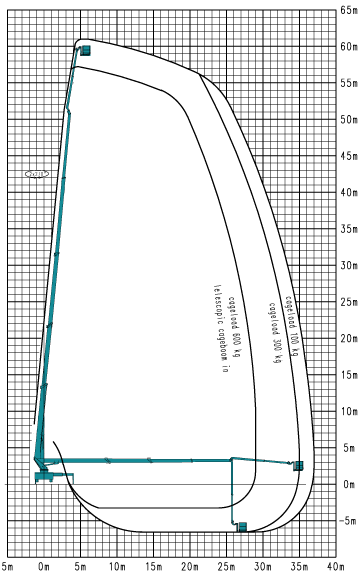

Machine diagram
Max. working height Max. outreach Total weight Overall length Transport dimensions Cage rotation Cage boom rotation Cage size Max. cage load

61.00m

37.50m

35,500kg

11.90m

 2.50m (w) x 4.30m (h)

180°

540°

3.90m x 1.10m

 600kg

Frequently asked questions

  • Do you have power in the basket?

    Yes, all trucks have 240v power supply in the basket and have an RCD circuit breaker protection for the 240v, with the exception of insulated units which do not have them.

  • Do you have lifting devices?

    Yes, we have lifting arms that are certified to lift 350kg each, this applies for the access equipment platform industrial units from 32m – 103m.  They are individually certified and serial numbered.

  • Do you have hydraulic connections in your basket?

    Yes, we do, which enables people to use tools such as hydraulic intensifiers – for power works.  This applies for the access equipment platform industrial units from 32m – 103m.

  • What are the biggest baskets you have?

    We have expandable baskets on our trucks which can expand from 2m to almost 4m giving you a huge platform to complete works without compromising basket weight capacity.  This applies for the access equipment platform industrial units 32m – 103m (excluding the 37m).

  • Are your platform controls fixed or movable?

    Our controls are movable and can be moved anywhere within the basket – top rail or bottom rails, allowing for greater flexibility when working.  This applies for the access equipment platform industrial units 32m – 103m

Hire our WT610 - (61m) or contact us to ask any additional questions.

For reliable and high-quality machinery in elevated work sites, choose the WT610 access platform. Reach out to our team today for a personalised hire quote.
