P570 Access platform hire

The Palfinger P570 access platform, with its impressive 57-metre boom, is designed for demanding high-access infrastructure sites. Readily available for hire to projects across Australia, this platform is renowned for its high quality, fully hydraulic processes, and adherence to stringent safety standards, ensuring efficient and safe operations at significant heights.

Request a quote

P570 Access platform hire

The Palfinger P570 access platform, with its impressive 57-metre boom, is designed for demanding high-access infrastructure sites. Readily available for hire to projects across Australia, this platform is renowned for its high quality, fully hydraulic processes, and adherence to stringent safety standards, ensuring efficient and safe operations at significant heights.

1300 774 586 Request a quote

P570 - (57m) access platform specifications

The P570 has a total weight of 29,840kg and a 6 x 6 drive type, ensuring stability and strength in operation. Offering a maximum working height of 57 metres and an outreach of 40.1 metres, this platform is equipped with a cage size of 3.90m x 1.10m, supporting a maximum load of 600kg.

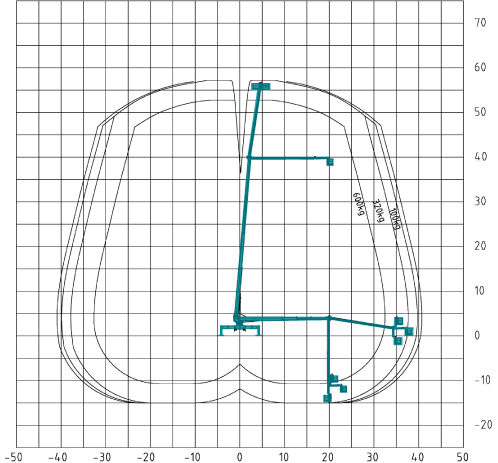

Machine diagram
Max. working height Max. outreach Total weight Overall length Transport dimensions Cage rotation Cage boom rotation Cage size Max. cage load

57.00m

40.10m

29,840kg

11.80m

2.50m (w) x 4.20m (h)

 400°

540°

 3.90m x 1.10m

 600kg

Frequently asked questions

  • Do you have power in the basket?

    Yes, all trucks have 240v power supply in the basket and have an RCD circuit breaker protection for the 240v, with the exception of insulated units which do not have them.

  • Do you have lifting devices?

    Yes, we have lifting arms that are certified to lift 350kg each, this applies for the access equipment platform industrial units from 32m – 103m.  They are individually certified and serial numbered.

  • Do you have hydraulic connections in your basket?

    Yes, we do, which enables people to use tools such as hydraulic intensifiers – for power works.  This applies for the access equipment platform industrial units from 32m – 103m.

  • What are the biggest baskets you have?

    We have expandable baskets on our trucks which can expand from 2m to almost 4m giving you a huge platform to complete works without compromising basket weight capacity.  This applies for the access equipment platform industrial units 32m – 103m (excluding the 37m).

  • Are your platform controls fixed or movable?

    Our controls are movable and can be moved anywhere within the basket – top rail or bottom rails, allowing for greater flexibility when working.  This applies for the access equipment platform industrial units 32m – 103m

Hire our P570 - (57m) or contact us to ask any additional questions.

For comprehensive access solutions on your high-access infrastructure projects, choose the Palfinger P570. Contact us for a personalised hire quote today.
